APC AP6009A
  • APC AP6009A
  • APC AP6009A
  • APC AP6009A
  • APC AP6009A
  • APC AP6009A
Wide range of input and output connections Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.Single input power source Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.Rack-Mountable Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.Low Cost Power Distribution Provides a number of outlets to bring power to rack equipment at an affordable price.
AC input frequency50 - 60 Hz
AC outlet typesC13 coupler,C19 coupler
AC outlets quantity26 AC outlet(s)
Cable length3.05 m
CertificationCE, EAC, IRAM, VDE, REACH
Dimensions (WxDxH)56 x 43 x 1626 mm
Maximum current32 A
Mountingvertical
Nominal input voltage230 V
Nominal output voltage230 V
Non-operating altitude0 - 15000 m
Operating altitude0 - 3000 m
Operating relative humidity (H-H)5 - 95 %
Operating temperature (T-T)0 - 50 °C
Package dimensions (WxDxH)226 x 135 x 1875 mm
Package weight8000 g
PDU typesBasic
Power plugIEC309
Power protection featuresOverload
Storage relative humidity (H-H)5 - 95 %
Storage temperature (T-T)-15 - 65 °C
Weight6180 g
Sustainability certificatesRoHS

APC AP6009A

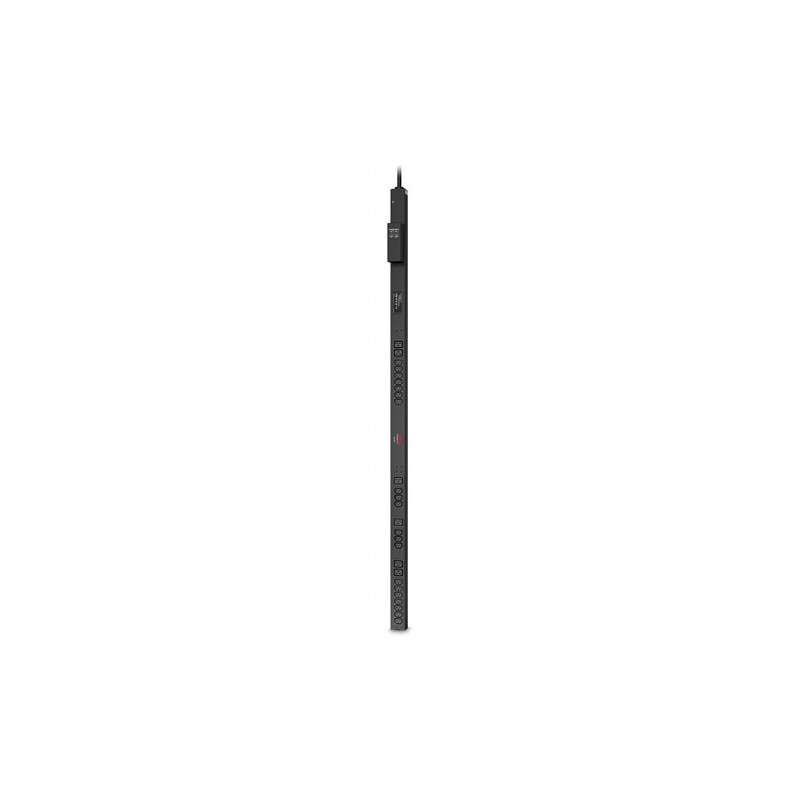

Rack PDU, basic, vertical, 220-240V, 32A, (20) C13, (6) C19

AP6009A

Out of Stock

£663.39
£552.82 Ex VAT.
