APC EasyPDU
  • APC EasyPDU
  • APC EasyPDU
  • APC EasyPDU
  • APC EasyPDU
Easy Switched Rack Power Distribution Units (Rack PDU) provide on/off outlet switching, advanced power management, load monitoring and much more features than the average power strip.1% Metering Accuracy Providing the same level of accuracy as a utility company meter by adhering to IEC 62053-21 class 1, 1% metering accuracy provides peace of mind to use these PDUs to bill based on power usage. In addition, the higher level of accuracy ensures the most precise measures for capacity planning and threshold alarm monitoring. Available on 9000 series PDUs. Metering-by-Outlet capability Individual outlet level power metering provides a more granular view of the power distributed to equipment within the enclosure. It also provides the ability to analyze component power trends and perform capacity planning. Remote Individual Outlet Control Remotely manage outlets so users can turn outlets off that are not in use (prevent overloads) or recycle power to locked-up equipment (minimize costly downtime and avoid travel time to equipment). Remote Management Capabilities Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Command Line Interface. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements. Vertical Mounting Capabilities Easily mounts vertically in racks or enclosures and occupies zero U of valuable rack space, which allows more equipment in the rack. Units that mount vertically are optimized to fit in a NetShelter enclosures. Zero U Rack Mounting Abilities Vertical mounting capabilities allow users to mount the units in a rack or enclosure without expending valuable rack space.
AC input frequency50/60 Hz
AC outlet typesC13 coupler,C19 coupler
AC outlets quantity24 AC outlet(s)
Cable length3 m
Daisy chainY
Depth56 mm
Height1800 mm
LED indicatorsY
Maximum current16 A
Mountingvertical
Nominal input voltage200 - 240 V
Non-operating altitude0 - 15000 m
Operating altitude0 - 3000 m
Operating relative humidity (H-H)5 - 95 %
Operating temperature (T-T)-5 - 45 °C
Output voltage230 V
Package depth130 mm
Package height2030 mm
Package weight7840 g
Package width195 mm
PDU typesMetered
Power plugIEC 60309
Rack capacity0U
Storage relative humidity (H-H)5 - 95 %
Storage temperature (T-T)-25 - 65 °C
TypeSingle-phase
Weight6670 g
Width55 mm

APC EasyPDU

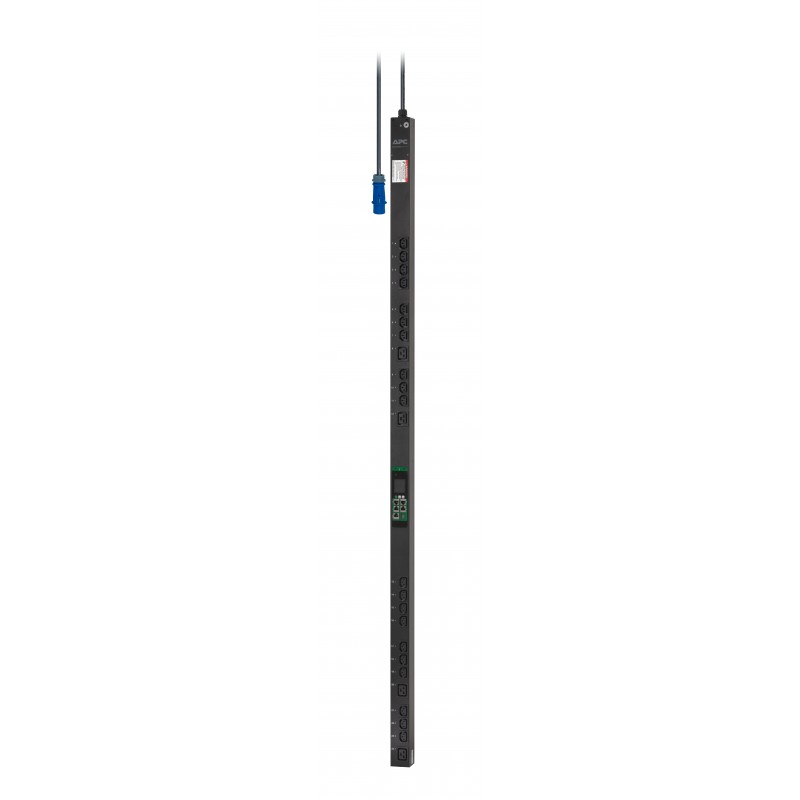

Metered-by-Outlet with Switching, ZeroU, 16A, 230V, (20) C13 & (4) C19

EPDU1116SMBO

Out of Stock

£1,150.32
£958.60 Ex VAT.
