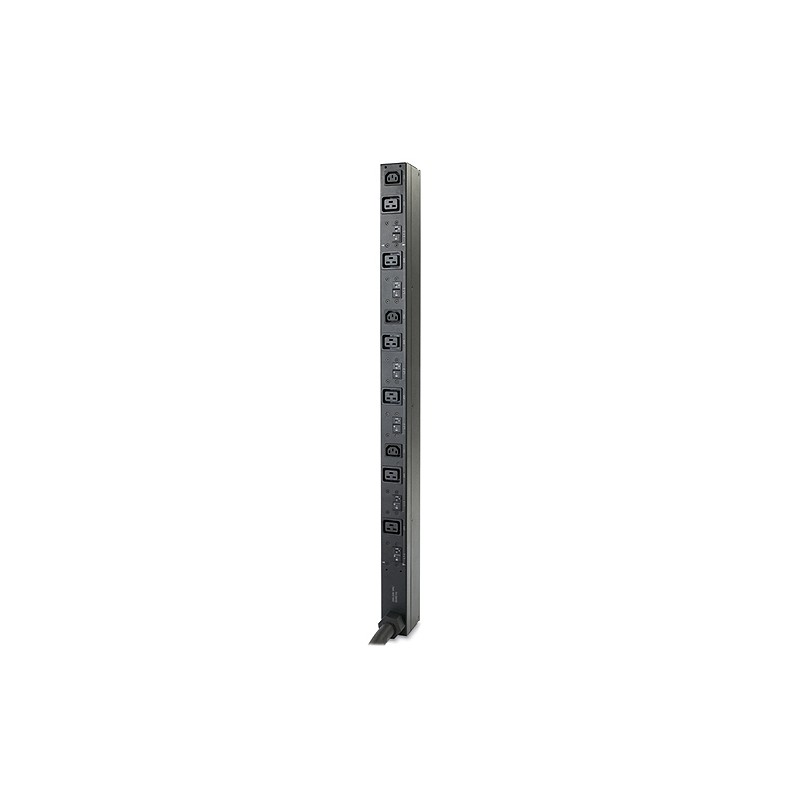

APC AP7567A
  • APC AP7567A
  • APC AP7567A
  • APC AP7567A
  • APC AP7567A
  • APC AP7567A
Marketing Features- Low Cost Power Distribution Provides a number of outlets to bring power to rack equipment at an affordable price. - Rack-Mountable Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment. - Single input power source Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections. - Wide range of input and output connections Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
AC input frequency47/63 Hz
AC outlet typesC13 coupler,C19 coupler
AC outlets quantity9 AC outlet(s)
Cable length1.83 m
CertificationcUL Listed, CSA C22.2 No. 60950-1-03, METI Denan, UL 60950-1, UL Listed
Dimensions (WxDxH)55 x 88 x 927 mm
Input connection typeCS8365
Maximum current50 A
Maximum total current draw per phase40 A
Nominal input voltage208 V
Non-operating altitude0 - 15000 m
Operating altitude0 - 3000 m
Operating relative humidity (H-H)5 - 95 %
Operating temperature (T-T)23 - 140 °F
Output voltage208 V
Package dimensions (WxDxH)298 x 83 x 1097 mm
Package weight8760 g
PDU typesBasic
Rack capacity0U
Storage relative humidity (H-H)5 - 95 %
Storage temperature (T-T)-25 - 65 °C
Weight7260 g
Sustainability certificatesRoHS

ap7567a.pdf

APC AP7567A Data Sheet

Download (2.48M)

APC AP7567A

208V, 47-63Hz, 1.83m, 50A, 55x88x927mm, 7.26kg, Black
