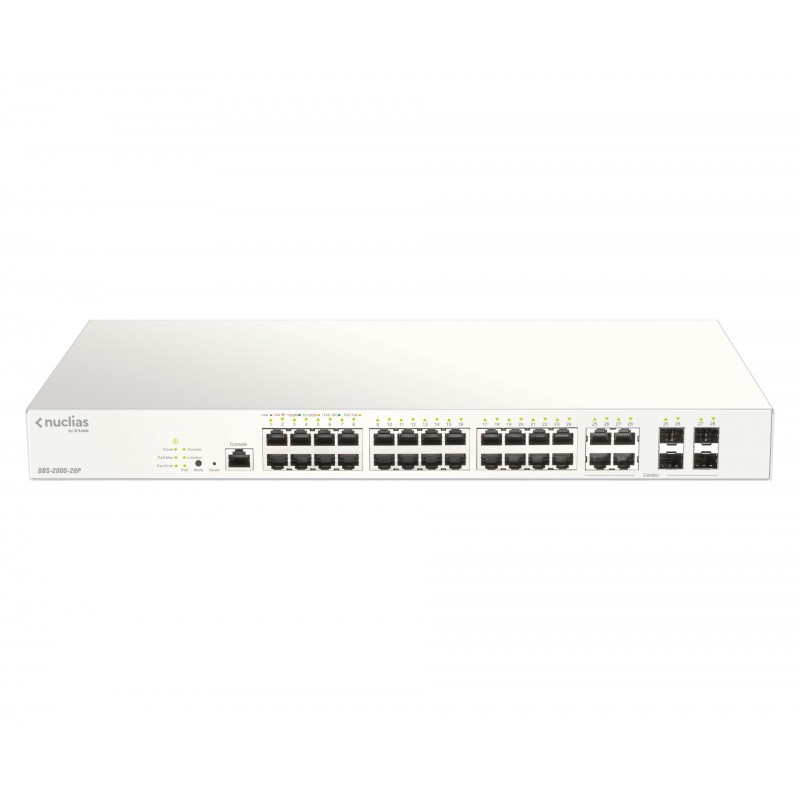

D-Link DBS-2000-28P
  • D-Link DBS-2000-28P
  • D-Link DBS-2000-28P
  • D-Link DBS-2000-28P
  • D-Link DBS-2000-28P
  • D-Link DBS-2000-28P
Cloud Networking, Refreshed

The DBS-2000 series of switches is part of the Nuclias Cloud solution – D-Link’s complete Cloud-Managed Networking solution for Small-to-Medium Businesses (SMBs), designed to make the ownership and administration of your IT infrastructure as simple and hassle-free as possible.



Management Over the Cloud

DBS-2000 is a series of Smart Managed Switches, manageable via the Nuclias Cloud Web Portal through any compatible online PC or Tablet. Connectivity with the Nuclias Cloud platform is guaranteed, with a 99.9% Service-Level-Agreement (SLA), and operation will continue even if the Cloud connection fails.



Easy Troubleshooting

The DBS-2000 Series features Cable Diagnostics and Per Port Traffic Packet Counters to help network admins find & solve network problems. Cable Diagnostics enables quick examination of cable quality, recognition of cable type, and detection of cable errors, with the Per-Port Traffic Packet Counter helping to further isolate problems.



Advanced Security Features

The DBS-2000 series utilizes the Nuclias Cloud Web Portal interface, giving administrators an easy way to manage Layer-2 features, such as VLANs, Spanning Tree Protocol (STP), and 802.3ad Link Aggregation (static). With powerful security features, including IGMP snooping, Static MAC, and end-to-end encryption (WPA/WPA2/WPA3), these Cloud switches are a versatile solution for deployments that require easy configuration, without added complexities.



Full PoE Support

Select models in the DBS-2000 Series support Power over Ethernet (PoE) for copper access ports. Power over Ethernet greatly simplifies the installation of PoE-enabled devices such as VoIP phones and IP cameras in remote locations with no immediate access to a power outlet.
10G supportNo
AC input voltage100 - 240 V
Auto MDI/MDI-XY
Basic switching RJ-45 Ethernet ports quantity24
Built-in processorY
Combo SFP ports quantity4
Copper ethernet cabling technology10BASE-T,100BASE-TX,1000BASE-T
Depth250 mm
Flash memory32 MB
Forwarding rate41.7 Mpps
Heat dissipation900.36 BTU/h
Height44 mm
IGMP snoopingY
Internal memory256 MB
LED indicatorsY
Link aggregationY
Mean time between failures (MTBF)469262 h
Memory typeDDR3-SDRAM
Networking standardsIEEE 802.3ad,IEEE 802.3at
Operating altitude0 - 1500 m
Operating relative humidity (H-H)0 - 95 %
Operating temperature (T-T)-5 - 50 °C
Package depth521 mm
Package height92 mm
Package weight5043 g
Package width365 mm
Packet buffer memory4.1 MB
Power consumption (max)263.9 W
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) ports quantity24
Processor frequency500 MHz
Security algorithmsWPA,WPA2
Spanning tree protocolY
Storage relative humidity (H-H)0 - 95 %
Storage temperature (T-T)-20 - 70 °C
Switching capacity56 Gbit/s
Total Power over Ethernet (PoE) budget193 W
Weight3750 g
Width440 mm
Shipping (inner) case net weight15129 g
Quantity per shipping (inner) case3 pc(s)
Shipping (inner) case gross weight16001 g
Pallet gross weight (air)403524 g
Number of cartons per pallet (air)24
Quantity per pallet (air)72 pc(s)
Pallet height (air)1314 mm
Pallet gross weight (sea)660040 g
Number of cartons per pallet (sea)40
Quantity per pallet (sea)120 pc(s)
Pallet height (sea)2100 mm

dbs-2000-28p.pdf

D-Link DBS-2000-28P Data Sheet

Download (727.63k)

Similar products

  • D-Link DBS-2000-10MP
    D-Link DBS-2000-10MP
  • D-Link DBS-2000-28
    D-Link DBS-2000-28
  • D-Link DBS-2000-28MP
    D-Link DBS-2000-28MP
  • D-Link DBS-2000-52
    D-Link DBS-2000-52

D-Link DBS-2000-28P

DBS-2000-28P, 56 Gbps, 41.7 Mpps, 24x 1G PoE RJ-45, 4x 1G SFP/RJ-45, 500MHz, 256MB DDR3, 440x250x44 mm

DBS-2000-28P

Out of Stock

£548.70
£457.25 Ex VAT.
