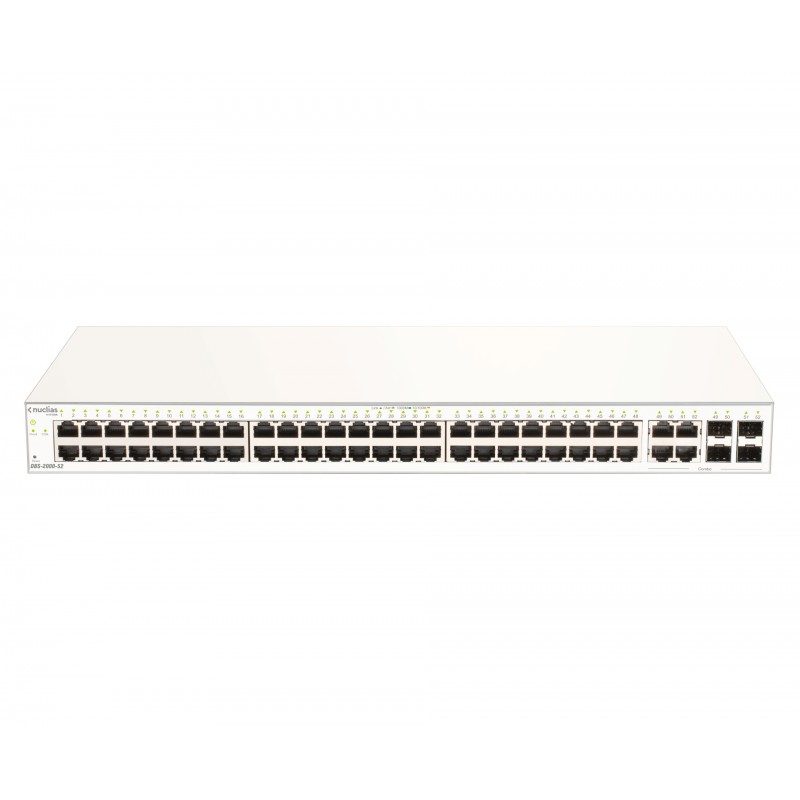

D-Link DBS-2000-52
  • D-Link DBS-2000-52
  • D-Link DBS-2000-52
  • D-Link DBS-2000-52
  • D-Link DBS-2000-52
  • D-Link DBS-2000-52
Cloud Networking, Refreshed

The DBS-2000 series of switches is part of the Nuclias Cloud solution – D-Link’s complete Cloud-Managed Networking solution for Small-to-Medium Businesses (SMBs), designed to make the ownership and administration of your IT infrastructure as simple and hassle-free as possible.



Management Over the Cloud

DBS-2000 is a series of Smart Managed Switches, manageable via the Nuclias Cloud Web Portal through any compatible online PC or Tablet. Connectivity with the Nuclias Cloud platform is guaranteed, with a 99.9% Service-Level-Agreement (SLA), and operation will continue even if the Cloud connection fails.



Easy Troubleshooting

The DBS-2000 Series features Cable Diagnostics and Per Port Traffic Packet Counters to help network admins find & solve network problems. Cable Diagnostics enables quick examination of cable quality, recognition of cable type, and detection of cable errors, with the Per-Port Traffic Packet Counter helping to further isolate problems.



Advanced Security Features

The DBS-2000 series utilizes the Nuclias Cloud Web Portal interface, giving administrators an easy way to manage Layer-2 features, such as VLANs, Spanning Tree Protocol (STP), and 802.3ad Link Aggregation (static). With powerful security features, including IGMP snooping, Static MAC, and end-to-end encryption (WPA/WPA2/WPA3), these Cloud switches are a versatile solution for deployments that require easy configuration, without added complexities.
10G supportNo
AC input voltage100 - 240 V
Auto MDI/MDI-XY
Basic switching RJ-45 Ethernet ports quantity48
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Built-in processorY
Combo SFP ports quantity4
Console portRJ-45
Copper ethernet cabling technology10BASE-T,100BASE-TX,1000BASE-T
Depth210 mm
Flash memory32 MB
Forwarding rate77.4 Mpps
Heat dissipation118.92 BTU/h
Height44.5 mm
IGMP snoopingY
Internal memory256 MB
LED indicatorsY
Link aggregationY
Mean time between failures (MTBF)400667 h
Memory typeDDR3-SDRAM
Networking standardsIEEE 802.3ad
Operating relative humidity (H-H)0 - 95 %
Operating temperature (T-T)-5 - 50 °C
Package depth552 mm
Package height98 mm
Package weight4603 g
Package width354 mm
Packet buffer memory12 MB
Power consumption (max)34.85 W
Power over Ethernet (PoE)No
Processor frequency700 MHz
Security algorithmsWPA,WPA2
Spanning tree protocolY
Storage relative humidity (H-H)0 - 95 %
Storage temperature (T-T)-20 - 70 °C
Switch typeManaged
Switching capacity104 Gbit/s
Web-based managementY
Weight3460 g
Width440 mm
Shipping (inner) case net weight13809 g
Quantity per shipping (inner) case3 pc(s)
Shipping (inner) case gross weight14740 g
Pallet gross weight (air)284820 g
Number of cartons per pallet (air)18
Quantity per pallet (air)54 pc(s)
Pallet height (air)1284 mm
Pallet gross weight (sea)462200 g
Number of cartons per pallet (sea)30
Quantity per pallet (sea)90 pc(s)
Pallet height (sea)2050 mm

dbs-2000-52.pdf

D-Link DBS-2000-52 Data Sheet

Download (727.63k)
