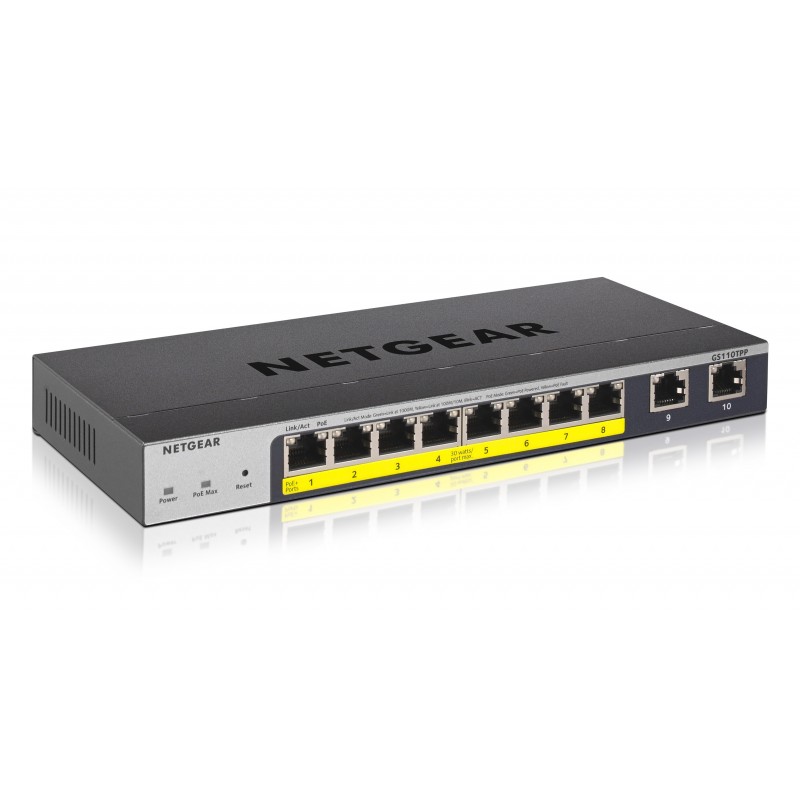

The NETGEAR GS110TPP 8-Port Gigabit PoE+ Ethernet Smart Managed Pro Switch comes with 8 PoE+ copper ports and 2 dedicated Ethernet ports for uplinks. Organizations can now deploy PoE devices with a PoE power budget of 120W. Each PoE+ port can provide up to 30 watts to power up the connected devices. Fanless, the GS110TPP supports perfectly silent desktop operation or wall mounting. The GS110TPP Smart Managed Pro Switch offers an easy-to-use Web browser-based management GUI with configurable L2/L2+ network features like VLANs and PoE operation scheduling, allowing SMB customers to deploy PoE-based VoIP phones and IP surveillance. This switch also comes with NETGEAR Insight Cloud management activation (subscription-based) for anytime remote management and monitoring through an intuitive app or Cloud Portal. Also, its Industry’s first flexible PoE+ integrated technology allows you to increase the PoE budget at any time to provide to your devices the power that they need with interchangeable optional external power adapter and an intuitive power selector.



Advanced features such as Layer 3 static routing including IPv6 management, ACL, DiffServ QoS, LACP link aggregation and Spanning Tree will satisfy even the most advanced small business networks. The GS110TPP is backed by NETGEAR’s ProSAFE Limited Lifetime Warranty and 24/7 technical support.



With its remote cloud manageability, large PoE budget, NETGEAR FlexPoE upgradable power and advanced L2 features, it’s the most versatile switch on the market for any environment!
AC input frequency50 - 60 Hz
AC input voltage100 - 240 V
Access Control List (ACL)Y
Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Broadcast storm controlY
DC input voltage54 V
Depth101 mm
Flash memory32 MB
Heat dissipation482.398 BTU/h
Height27 mm
IGMP snoopingY
Input current2.4 A
Internal memory128 MB
Jumbo frames supportY
LED indicatorsActivity,Link,PoE,Power,Speed
Link aggregationY
MAC address filteringY
MAC address table8000 entries
ManualY
Memory typeRAM
Networking standardsIEEE 802.1D,IEEE 802.1s,IEEE 802.1w,IEEE 802.3ad,IEEE 802.3az,IEEE 802.3x
Non-operating altitude0 - 3000 m
Operating altitude0 - 3000 m
Operating relative humidity (H-H)0 - 95 %
Operating temperature (T-T)0 - 40 °C
Package depth267 mm
Package height86 mm
Package weight1730 g
Package width161 mm
Port mirroringY
Power consumption (max)11.3 W
Power consumption (typical)141.3 W
Power over Ethernet (PoE)Yes
Power over Ethernet plus (PoE+) ports quantity8
Power supply includedY
Processor frequency500 MHz
Quality of Service (QoS) supportY
Rack mountingYes
Rate limitingY
Security algorithms802.1x RADIUS
Spanning tree protocolY
StackableYes
Storage relative humidity (H-H)0 - 95 %
Storage temperature (T-T)-20 - 70 °C
Switch layerL2/L3/L4
Switch typeManaged
Switching capacity20 Gbit/s
Total Power over Ethernet (PoE) budget190 W
Web-based managementY
Weight640 g
Width236 mm
Master (outer) case width274 mm
Master (outer) case length350 mm
Master (outer) case height309 mm
Master (outer) case weight11230 g
Quantity per master (outer) case6 pc(s)
Access Control List (ACL) IPv4 entries32

gs110tpp-100eus.pdf

Netgear GS110TPP Data Sheet

Download (863.04k)
