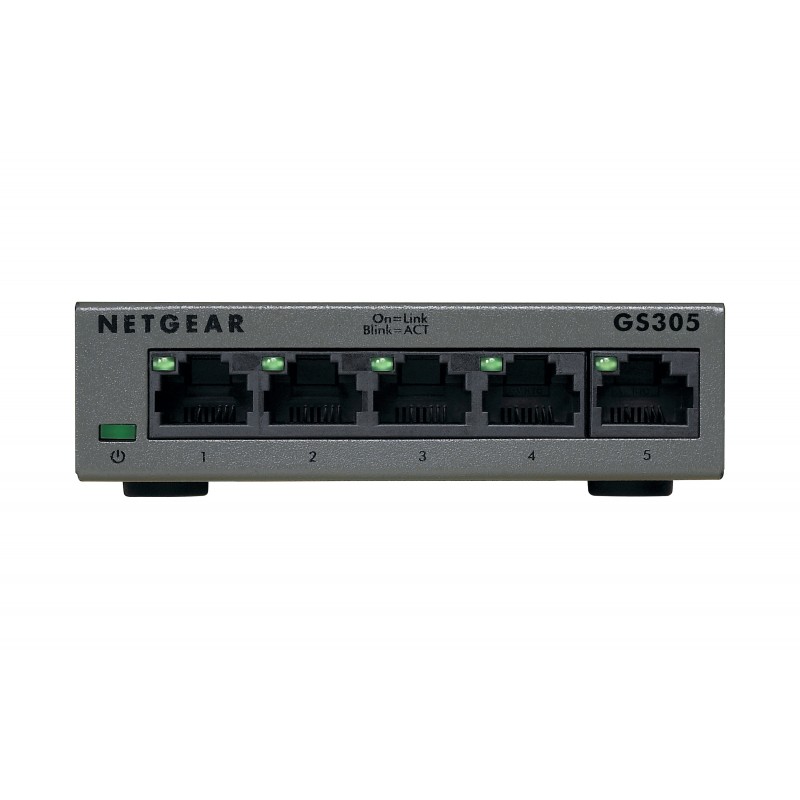

SOHO Ethernet Switch Series

Expanding Wired Connectivity for SOHO Networks

The NETGEAR SOHO Ethernet Unmanaged Switches provide easy and affordable network connectivity to small offices and home/offices. They are easy to use, reliable, and rugged with metal enclosures. Power-over-Ethernet (PoE) support is also available for supplying both power and data across a single CAT-5 ethernet cable to devices such as IP security cameras, VoIP phones, wireless access points, etc. With these Plug-and-Play switches, you can quickly and easily expand your network connections to multiple devices, with no configuration required. Available with 5 ports to 48 ports, these switches also support energy saving technologies to help you save power and money.

10G support	Yes
Auto MDI/MDI-X	Y
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Certification	CE Mark, FCC Part 15 Class B, IC Class B, RCM, VCCI, CB, CE LVD
DC input voltage	5 V
Depth	94 mm
Full duplex	Y
Gigabit Ethernet (copper) ports quantity	5
Heat dissipation	7.35 BTU/h
Height	29 mm
Housing material	Metal
Input current	0.7 A
Jumbo frames support	Y
Latency (1 Gbps)	2.6 µs
LED indicators	Activity,Link,Power
MAC address table	2000 entries
Mean time between failures (MTBF)	3831422 h
Networking standards	IEEE 802.3ab,IEEE 802.3az,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x
Operating altitude	0 - 3000 m
Operating relative humidity (H-H)	0 - 90 %
Operating temperature (T-T)	0 - 40 °C
Packet buffer memory	0.128 MB
Power consumption (max)	2.15 W
Power over Ethernet (PoE)	No
Quality of Service (QoS) support	Y
Rack mounting	No
Stackable	No
Storage relative humidity (H-H)	0 - 95 %
Storage temperature (T-T)	-20 - 70 °C
Switch type	Unmanaged
Switching capacity	10 Gbit/s
Wall mountable	Y
Weight	250 g
Width	101 mm
Fanless	Y
