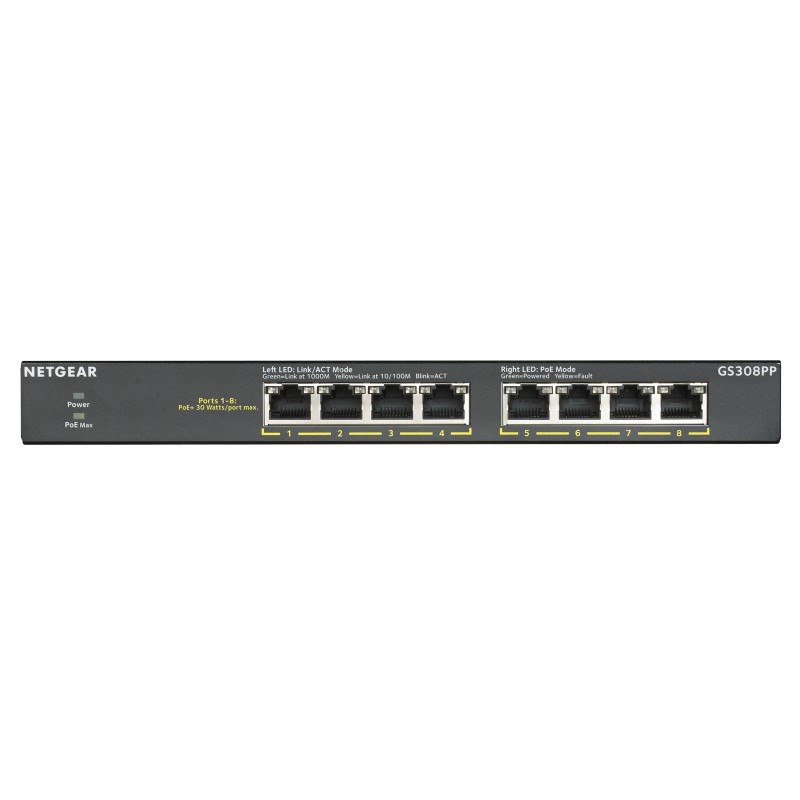

NETGEAR 300 Series Gigabit Ethernet Unmanaged Switches with PoE provide easy, reliable, and affordable network connectivity for home and small offices. With these unmanaged plug-and-play switches, you can expand your network connections to multiple devices instantly.

The unmanaged switches provides power and data from a single Ethernet (CAT-5e) cable to devices such as IP cameras, VoIP/ Internet-based phones, wireless access points, etc. The majority of these models also support PoE power auto-balance and allocation feature.

NETGEAR’s unique PoE technology automatically balances the PoE power based on the device needs independent of PoE class detected. These switches deliver the power the device needs, at the most granular level

10G support	No
Auto MDI/MDI-X	Y
Auto-negotiation	Y
Auto-sensing	Y
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Certification	CE Mark, \nFCC Part 15 \nClass A, \nIC Class A, \nRCM, \nVCCI,\nBSMI, \nKC
DC input voltage	54 V
Depth	102 mm
Flow control support	Y
Full duplex	Y
Heat dissipation	300.6 BTU/h
Height	27 mm
Housing material	Metal
Input current	1.66 A
Jumbo frames support	Y
Latency (1 Gbps)	3 µs
LED indicators	Activity,Link,PoE,Power,Speed
MAC address table	4000 entries
Mean time between failures (MTBF)	2752476 h
Networking standards	IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x
Operating relative humidity (H-H)	0 - 90 %
Operating temperature (T-T)	0 - 40 °C
Packet buffer memory	0.192 MB
Power consumption (max)	87.9 W
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	8
Quality of Service (QoS) support	Y
Storage relative humidity (H-H)	0 - 3000 %
Storage temperature (T-T)	-20 - 70 °C
Switch type	Unmanaged
Switching capacity	16 Gbit/s
Total Power over Ethernet (PoE) budget	130 W
Wall mountable	Y
Weight	600 g
Width	236 mm
Power over Ethernet (PoE) type supported	PoE+
