10G support | No |
Basic switching RJ-45 Ethernet ports quantity | 8 |
Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Built-in processor | Y |
Cables included | AC |
DC input voltage | 12 V |
Depth | 101 mm |
Flash memory | 32 MB |
Flow control support | Y |
Full duplex | Y |
Heat dissipation | 22.02 BTU/h |
Height | 30 mm |
IGMP snooping | Y |
Input current | 1 A |
Internal memory | 128 MB |
Jumbo frames support | Y |
LED indicators | Activity,Link,Power |
MAC address table | 8000 entries |
Management protocols | SNMP v1, v2c, v3 |
Mean time between failures (MTBF) | 2957592 h |
Multicast support | Y |
Networking standards | IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x |
Number of multicast groups filtered | 256 |
Number of queues | 8 |
Number of VLANs | 64 |
Operating altitude | 0 - 3000 m |
Operating relative humidity (H-H) | 5 - 95 % |
Operating temperature (T-T) | 0 - 40 °C |
Package depth | 270 mm |
Package height | 64 mm |
Package type | box |
Package weight | 750 g |
Package width | 226 mm |
Packet buffer memory | 0.5 MB |
Port mirroring | Y |
Power consumption (max) | 6.4 W |
Power over Ethernet (PoE) | No |
Processor frequency | 500 MHz |
Quality of Service (QoS) support | Y |
Reset button | Y |
Spanning tree protocol | Y |
Storage relative humidity (H-H) | 5 - 95 % |
Storage temperature (T-T) | -20 - 70 °C |
Store-and-forward | Y |
Switch layer | L2 |
Switch type | Managed |
Switching capacity | 16 Gbit/s |
User guide | Y |
VLAN support | Y |
Weight | 410 g |
Width | 158 mm |
MAC address entries | Static MAC address entries |
Multicast protocols | IGMP |

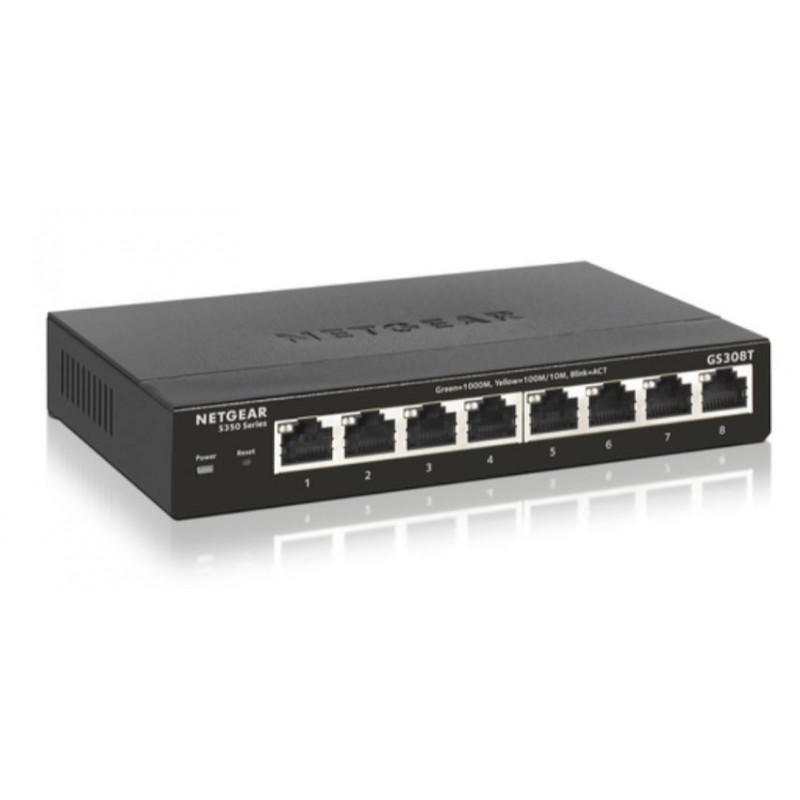

GS308T — S350 Series 8-Port Gigabit Ethernet Smart Managed Pro Switch
GS308T-100UKS
Out of Stock
