The NETGEAR SOHO Ethernet Unmanaged Switches provide easy and affordable network connectivity to small offices and home/offices. They are easy to use, reliable, and rugged with metal enclosures. Power-over-Ethernet (PoE) support is also available for supplying both power and data across a single CAT-5 ethernet cable to devices such as IP security cameras, VoIP phones, wireless access points, etc. With these Plug-and-Play switches, you can quickly and easily expand your network connections to multiple devices, with no configuration required. Available with 5 ports to 48 ports, these switches also support energy saving technologies to help you save power and money.
10G supportNo
AC input frequency50/60 Hz
AC input voltage100 - 240 V
Auto MDI/MDI-XY
Auto-negotiationY
Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
CertificationCB, CE LVD, UL
Depth206 mm
Electromagnetic compatibilityCE, FCC 15 A, IC A, RCM, VCCI, KC
Form factor1U
Full duplexY
Heat dissipation718.2 BTU/h
Height43 mm
Housing materialMetal
Input current3 A
Jumbo frames supportY
Latency (1 Gbps)4 μs
LED indicatorsActivity,Link,PoE,Power,Speed
MAC address table8000 entries
Mean time between failures (MTBF)1193574 h
Networking standardsIEEE 802.1p,IEEE 802.3at
Number of fans1 fan(s)
Operating altitude0 - 3000 m
Operating relative humidity (H-H)10 - 90 %
Operating temperature (T-T)0 - 45 °C
Packet buffer memory0.192 MB
Power consumption (max)210 W
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) ports quantity16
Quality of Service (QoS) supportY
Rack mountingYes
Storage relative humidity (H-H)10 - 95 %
Storage temperature (T-T)-20 - 70 °C
Switch typeUnmanaged
Switching capacity48 Gbit/s
Total Power over Ethernet (PoE) budget190 W
Weight2440 g
Width330 mm

gs324p-100eus.pdf

Netgear GS324P Data Sheet

Download (596.37k)

Similar products

  • Netgear M4500-32C
    Netgear M4500-32C
  • Netgear GS108T-300
    Netgear GS108T-300
  • Netgear GS110TP
    Netgear GS110TP
  • Netgear GS110TPP
    Netgear GS110TPP
  • Netgear 10-Port Gigabit Ethernet Ultra60 PoE++ Smart Managed Pro Desktop Switch with 1 SFP and 1 Copper Uplink
    Netgear 10-Port Gigabit Ethernet Ultra60...

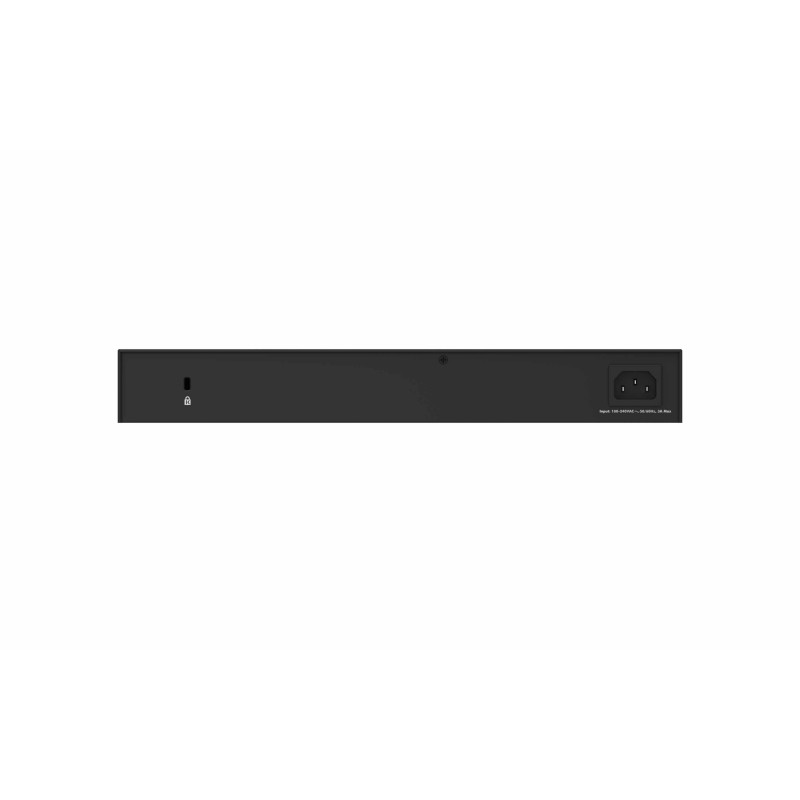

Netgear GS324P

GS324P, 24x 1G RJ-45, 48 Gbps, 192 KB, QoS, PoE, 100-240V AC, 330x206x43 mm, Europe and United Kingdom

GS324P-100EUS

In Stock

£344.38
£286.98 Ex VAT.
