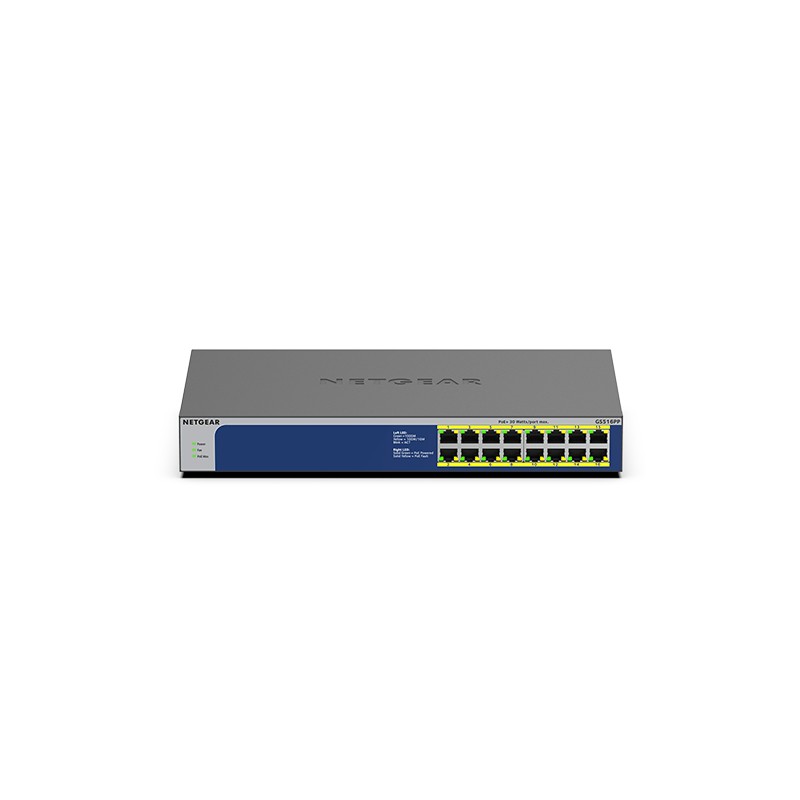

Instant Connectivity and Reliable Performance

The NETGEAR Gigabit Unmanaged Switch series helps your business cost-effectively expand your network to Gigabit speeds and higher port counts. The GS516PP joins the series and offers 16 PoE+ ports to power high-power PoE devices. With a total PoE power budget of 260W, deploy denser PoE+ devices to a single switch rather than multiple



The GS516PP is energy efficient, built to last, and rigorously tested to provide the reliability your business needs. 802.1p traffic prioritization and jumbo frame support allow for seamless integration with more sophisticated networks.



Powerful and Energy Efficient

Ideal for powering and connecting VoIP phones, wireless access points, IP Cameras and IoT devices. Desktop or rackmount for flexible placement. The GS516PP gives you a highly cost-effective and powerful switch with the best cost/PoE budget ratio.



NETGEAR Unmanaged Switches support the latest Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected. It can further save energy when a short cable is used.
10G supportNo
AC input frequency50/60 Hz
AC input voltage100 - 240 V
Auto MDI/MDI-XY
Basic switching RJ-45 Ethernet ports quantity16
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
CertificationFCC 47 CFR Part15B (Class A)\nICES-003 Class A\nEN 55024/55032/55035 (Class A)\nAS/NZS CISPR 32\nVCCI\nBSMI CNS13438\nKCC\n\nUL 62368-1\nCB_IEC 60950-1 + IEC 62368-1 Ed-3\nLVD EN60950-1+EN62368-1 Ed-2 Rpt\nAS/NZS 62368.1 Ed-2\nBSMI CNS14336-1
Copper ethernet cabling technology10GBASE-T,100BASE-T,1000BASE-T
Depth207 mm
Full duplexY
Height43 mm
Housing materialMetal
Jumbo frames supportY
Latency (1 Gbps)12 µs
LED indicatorsActivity,Fan fail,Link,PoE,Power,Speed
MAC address table8000 entries
Mean time between failures (MTBF)2415333.9 h
Networking standardsIEEE 802.3ab,IEEE 802.3az,IEEE 802.3i,IEEE 802.3u
Number of fans2 fan(s)
Operating altitude0 - 3000 m
Operating relative humidity (H-H)10 - 90 %
Operating temperature (T-T)0 - 50 °C
Packet buffer memory0.192 MB
Power consumption (max)316.1 W
Power over Ethernet (PoE)Yes
Power over Ethernet plus (PoE+) ports quantity16
Power supply includedY
Quality of Service (QoS) supportY
Rack mountingYes
Storage relative humidity (H-H)10 - 95 %
Storage temperature (T-T)-20 - 70 °C
Switch typeUnmanaged
Switching capacity32 Gbit/s
Total Power over Ethernet (PoE) budget260 W
Weight2300 g
Width330 mm
Half duplexY
Power over Ethernet (PoE) type supportedPoE+

gs516pp-100eus.pdf

Netgear GS516PP Data Sheet

Download (661.18k)
