HomeTP-Link Omada 52-Port Gigabit Smart Switch with 32-Port PoE+

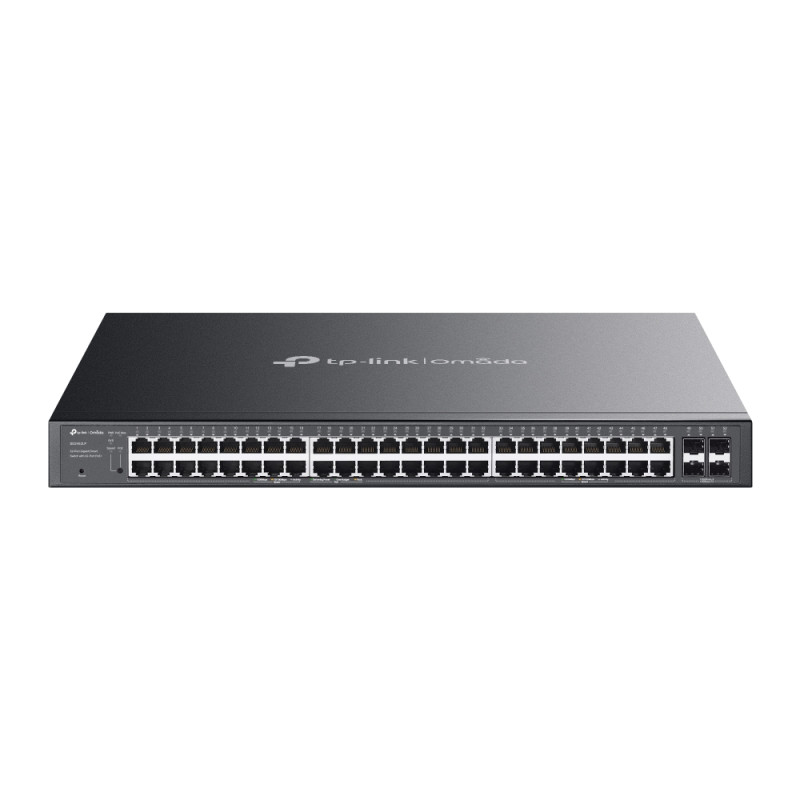

TP-Link Omada 52-Port Gigabit Smart Switch with 32-Port PoE+
  • TP-Link Omada 52-Port Gigabit Smart Switch with 32-Port PoE+
  • TP-Link Omada 52-Port Gigabit Smart Switch with 32-Port PoE+
  • TP-Link Omada 52-Port Gigabit Smart Switch with 32-Port PoE+
  • TP-Link Omada 52-Port Gigabit Smart Switch with 32-Port PoE+
  • TP-Link Omada 52-Port Gigabit Smart Switch with 32-Port PoE+
  • TP-Link Omada 52-Port Gigabit Smart Switch with 32-Port PoE+
Power over Ethernet, Flexible Network Deployment

Easily Build a Whole 10G Multi-gigabit Network

Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.
10G supportNo
AC input frequency50/60 Hz
AC input voltage100 - 240 V
Auto MDI/MDI-XY
Basic switching RJ-45 Ethernet ports quantity48
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Depth330 mm
Ethernet LAN data rates10,100,1000 Mbit/s
Flow control supportY
Form factor1U
Forwarding rate77.37 Mpps
Heat dissipation1035.4 BTU/h
Height44 mm
IGMP snoopingY
IP routingY
Jumbo frames supportY
LED indicatorsY
Link aggregationY
MAC address filteringY
MAC address table16000 entries
MIB supportY
Networking standardsIEEE 802.1Q,IEEE 802.1p,IEEE 802.3ab,IEEE 802.3x
Operating relative humidity (H-H)10 - 90 %
Operating temperature (T-T)0 - 40 °C
Port mirroringY
Power consumption (max)304.5 W
Power over Ethernet (PoE)Yes
Power over Ethernet plus (PoE+) ports quantity32
Power sourceAC
Power supply includedY
Quality of Service (QoS) supportY
Rack mountingYes
Security algorithmsSNMP,SNMPv2,SNMPv3
SSH/SSL supportY
Storage relative humidity (H-H)5 - 90 %
Storage temperature (T-T)-40 - 70 °C
Switch layerL2/L2+
Switch typeManaged
Switching capacity104 Gbit/s
System event logY
Total Power over Ethernet (PoE) budget230 W
VLAN supportY
Web-based managementY
Width440 mm
Cloud-managedY

sg2452lp.pdf

TP-Link Omada 52-Port Gigabit Smart Switch with 32-Port PoE+ Data Sheet

Download (633.61k)

Similar products

  • TP-Link JetStream 48-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots
    TP-Link JetStream 48-Port Gigabit L2+...
  • TP-Link TL-SX3016F
    TP-Link TL-SX3016F
  • TP-Link JetStream 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 48-Port PoE+
    TP-Link JetStream 48-Port Gigabit and...
  • TP-Link JetStream 6-Port 10GE L2+ Managed Switch with 4-Port PoE++
    TP-Link JetStream 6-Port 10GE L2+ Managed...
  • TP-Link 5-Port Gigabit Desktop Switch with 4-Port PoE+
    TP-Link 5-Port Gigabit Desktop Switch with...

TP-Link Omada 52-Port Gigabit Smart Switch with 32-Port PoE+

32× 10/100/1000 Mbps PoE+ RJ45, 16× 10/100/1000 Mbps non-PoE RJ45, 4× Gigabit SFP, 104 Gbps, 16 K MAC, 9 KB Jumbo, 440x330x44 mm

sg2452lp

In Stock

£525.00
£437.50 Ex VAT.
