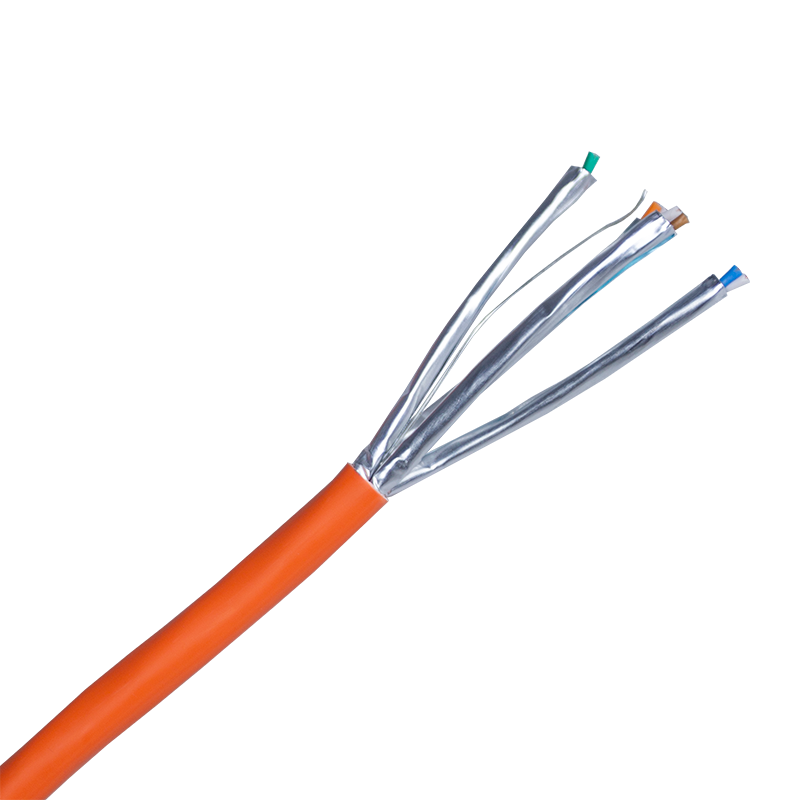

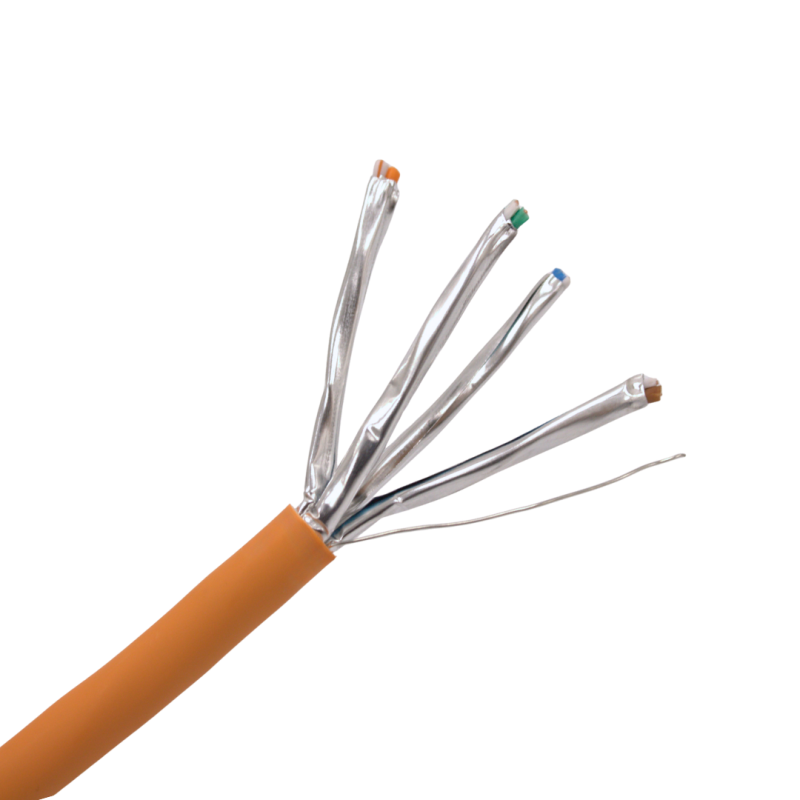

Connectix Category 6a U/FTP Cable has been designed to provide the exceptional performance required to support extremely high-speed applications, including 10-Gigabit Ethernet.

The B2ca LSZH sheath offers excellent fire performance making this the ideal choice in public buildings and other high risk locations.

The individually shielded pairs ensure maximum transmission, free from the problems of NEXT and alien crosstalk. Exceeds the requirements of BS6701:2016+A1:2017 for installation cables.

Features & Benefits:

B2Ca Fire Rated Orange Cable
U/FTP shielding
Available from Stock
Suitable for Gigabit Ethernet applications
Supplied metre marked for easy installation
Pure copper cores
Excellent performance exceeding ANSI/TIA Category 6A specifications
In line with BS6701:2016+A1:2017 specifications
25 Year System Warranty
Available in 100m and 305m boxes

Operating temperature (T-T)	-20°C up to +60 °C
Conforms to	IEEE 802.3: 10Base-T, 100Base-T, 1000Base-T, 10GBase-T standards; ANSI/TIA 568C; ISO/IEC 11801; RoHS2002/95/EC
Fire Rating	B2ca,s1a,d1,a1
Insulation	Skin-foam-skin Polyethylene, Ø 1.33 mm
Min. Bending Radius Installation	60mm
Min. Bending Radius Installed	30mm
Installation temperature (T-T)	0˚C to +50˚C
Conductor	Bare copper wire (AWG 23)
Drain Wire	yes
Shield Around Each Pair	Al/Mylar
Sheath	FR-LSZH
Outer Diameter	7.4mm
Max. Pulling Tension	78n
